hard driver PCB Board/ 100720903 M8_REV.07 R00 ST1000LM024 ST500LM012 ST1000LM02 , ST1000LM025

$8.00

740 in stock

100720903100720903 03100720903 04
Clear
Compare

Hard driver pcb board for samsung /Logic Board /Board Number: 100720903 04 M8_REV.07 R00 and 100720903 03 M8_REV.07 R00Because there is no difference, the order did not note random deliveryThe Hard Disk Drive is not include.

Number of board space location

Please Note:

1.These boards are used, the circuit board components not falling, the interface did not break.

2. All PCB have been tested before shipping. If the PCB is faulty during shipping, please inform us immediately after your received it.

3. If you are not sure the PCB is compatible with your HDD or not. Please contact us
Replacement the PCB only can solve the problem that is caused by the PCB faulty and HDD failures are not always caused by the PCB faulty. This PCB is not guaranteed to fix your HDD.

Main Controller IC:88I9422-NDB2 (Both IC is compatible with each other)
HDD Motor Combo IC:TLS2605 (Both IC is compatible with each other)
Board Number: 100720903 0.4 M8_REV.07 R00 ,100720903 0.3 M8_REV.07 R00 (Please make sure your original PCB board number is same as our PCB)

Remarks: If your HDD firmware, date code and site code is different. You can swap the BIOS chip from original PCB to the replacement PCB, to make the replacement PCB compatible with your HDD.

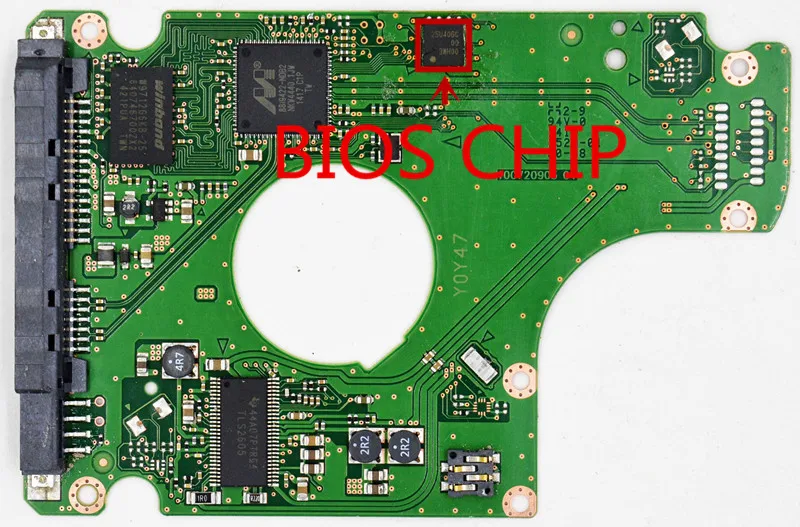

the BIOS chip position

Attention: Replacement the PCB only can solve the problem that is caused by the PCB faulty. If your HDD having the following problem.

Symptoms of failure:

The drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer
The drive will power up normally and be recognized correctly but will report a size of 0 bytes
The drive will power up but report SMART errors on boot

Replacement the PCB may not solve the above problem. These problem is caused by the HDD firmware corrupted.

Additional information

Brand Name

NoEnName_Null

Type

Industrial Computer Accessories

Model Number

100720903

Products Status

Used
